Experimental car brake disc stand (NTC/Skoda)

Description

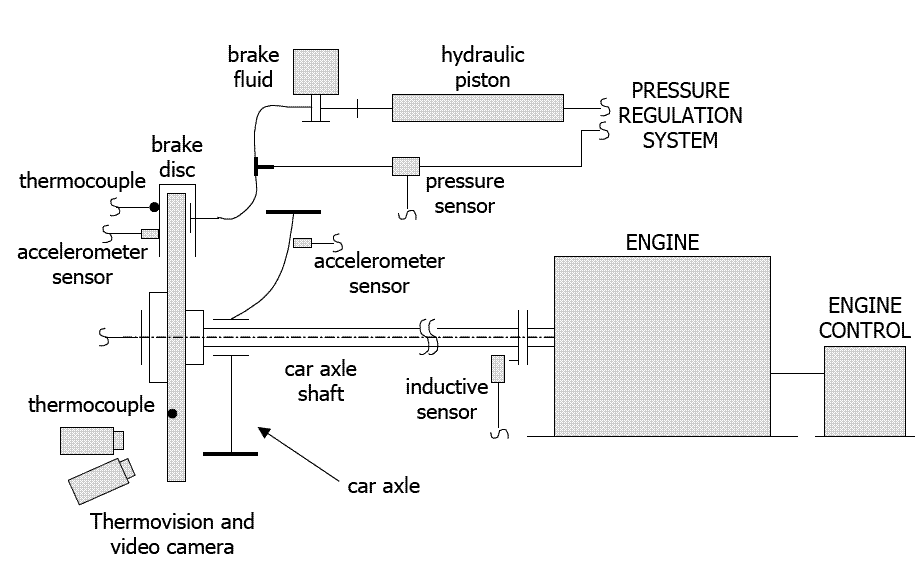

The REX control system was used to control experimental stand for temperature field measurement in car brake discs. The main task was the cascading control of brake pads pressure. The research for Skoda AUTO company is conducted at the Faculty of Mechanical Engineering, University of West Bohemia in Pilsen, Czech Republic .

Photos

HW and SW used

• HW: Industrial PC with PharLap ETS, Advantech I/O boards

• SW: REX control system
• SW: Visualization - Iconics Genesis
