Jet loom (VUTS)

Description

The REX Control System was used to control the jet loom newly developed in VUTS a.s. The most difficult was the precise control and synchronization of cutting knives. Furthermore, the synchronization of motors had to be solved. Thanks to 1ms sampling period the loom is able to produced 2m of material per second.

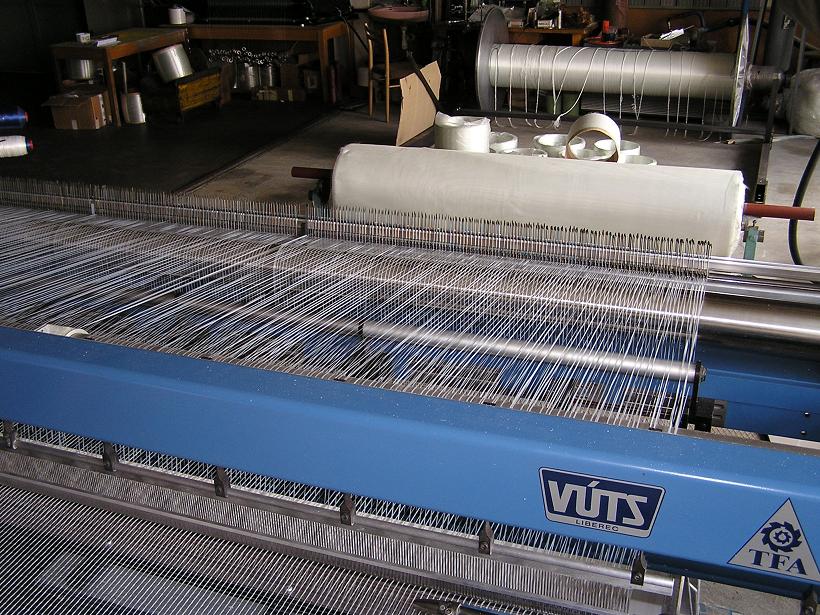

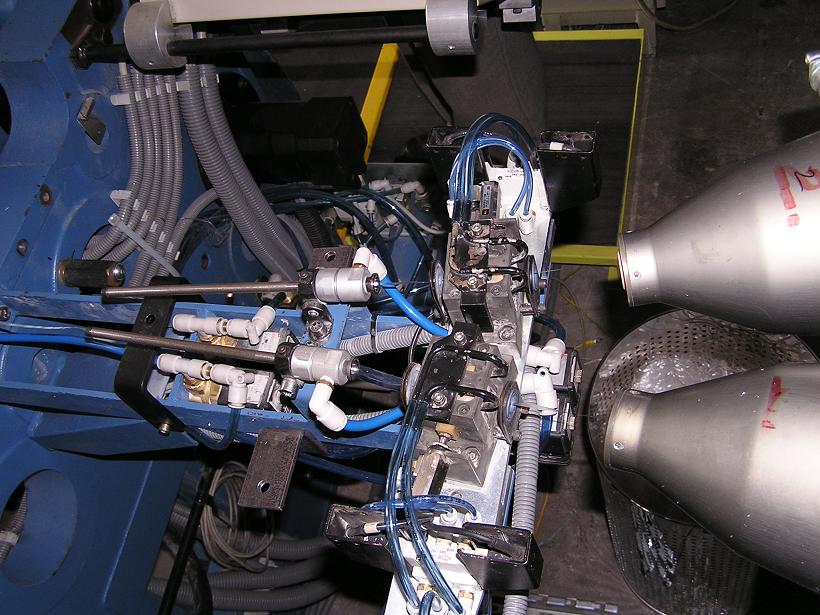

Photos

HW and SW used

• HW: Industrial PC with PharLap ETS, Advantech I/O boards
• SW: REX control system
• SW: Visualisation - Indusoft
